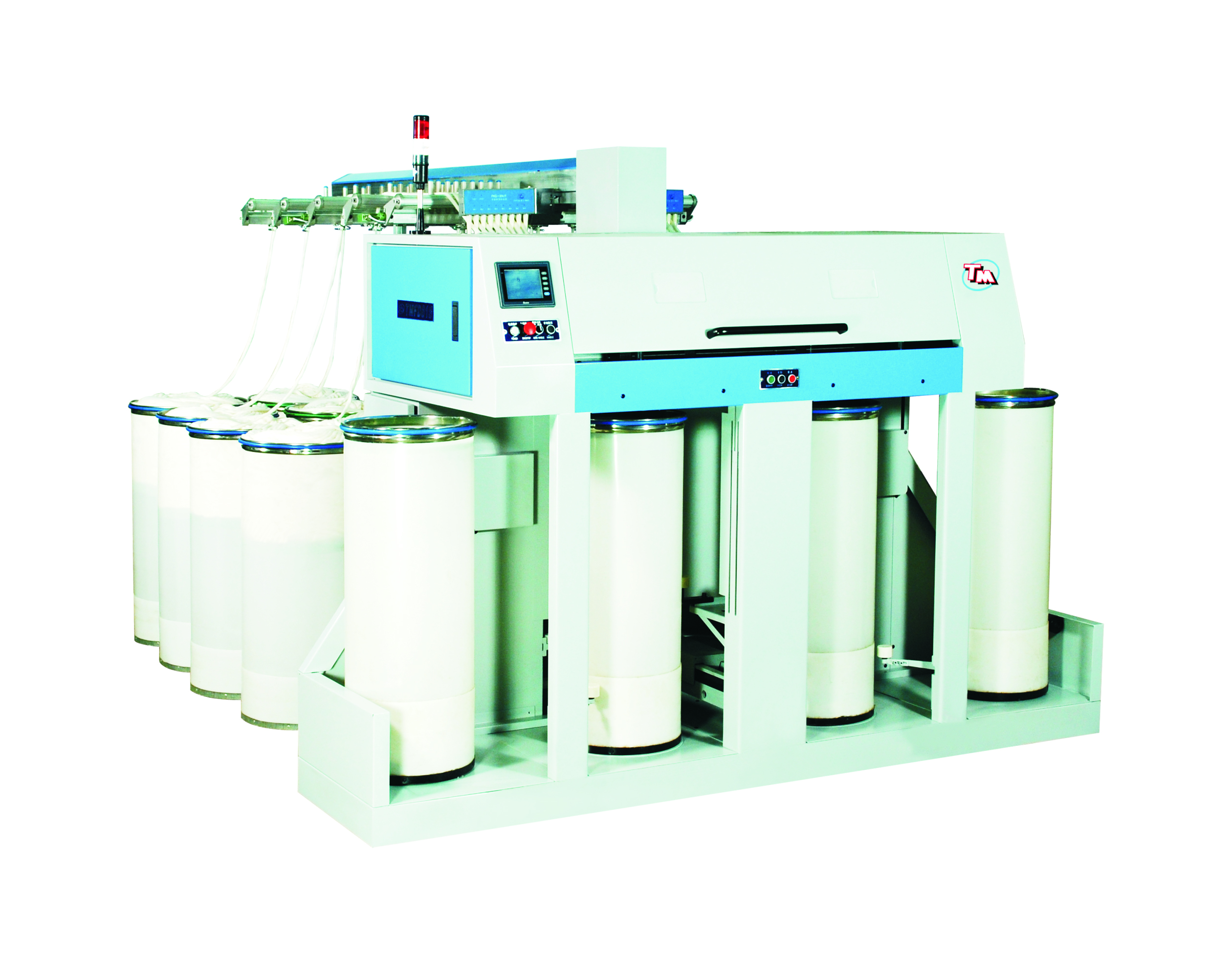

Drawing Frame TMFD81(S)

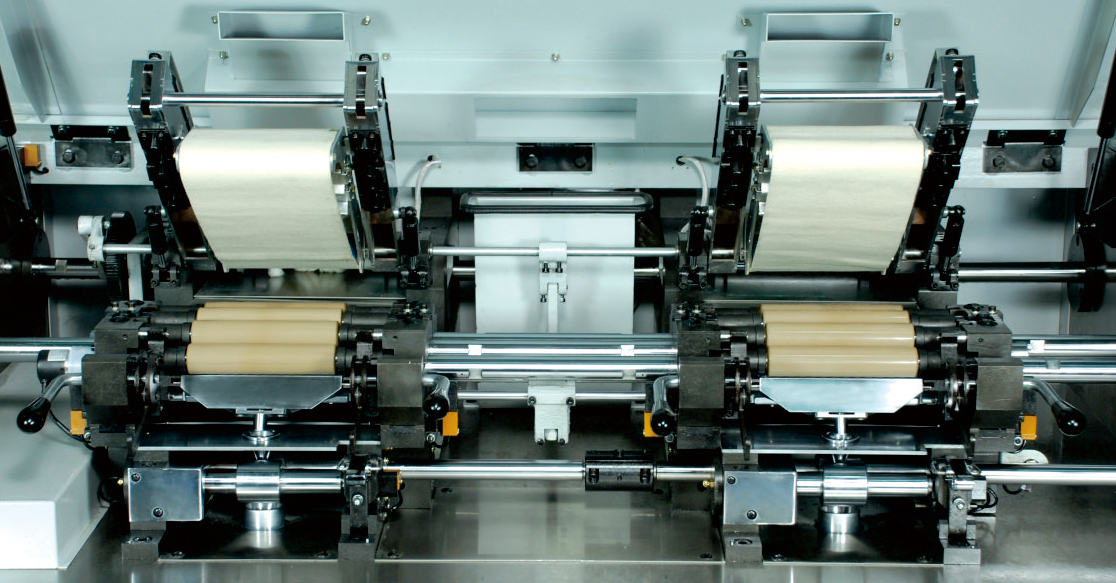

● 3 over 3 double zone curvilinear draft system with guiding top roller and pressure bar.
● Floating metal bar or rotary flannelette belt for top roller cleaner, and oscillating traverse butyronitrile rubber apron as bottom cleaner.
● Optimized driving design, short driving route, steady running and lower noise.
● Aluminum alloy overhead creel or Overhead creel lengthwise positive feeding with pressure roller.
● Adjustable draft ratios for coiler, front draft, back draft and creel, coupling without key, bring more flexibility for various fibers.
● Available for automatic filter cleaning, can-changer positive sliver breaking device for full can; Automatic end making, Automatic central lubrication system, etc. which are optional.
● Adopting patented electronic sliver breaking technology
● Brand-new cradle pressurizing unit with strong stiffness,pressurizing is stable and reliable,cradle is supported by air-spring,easy to open and close,pneumatic pressure load option is avalilable
● Use programmable logic controller (PLC), touch screen display, frequency control of motor speed etc; pre-set central intranet interface, remote error and failure diagnose is available.
● TMFD81 changes technical gear manually in traditional ways, TMFD81S is equipped with electrical gear setting system, calibrating weight unevenness digitally, no need to change technical gears.

Technical specifications:

Range of Application

Fiber length up to 76mm combed and carded cotton, chemical fiber and blends

Delivery

Two

The highest output speed

800m/min

Roller Dia.

Top Roller

¢34 ¢34 ¢34mm

Bottom Roller

¢40 ¢35 ¢35mm

Drafting System

3 over 3 double zone curvilinear drafting system with guiding top roller

Total Draft (between 1st and 3rd rollers)

5.29~9.96

Can Size

Input

¢400 ¢500 ¢600 ¢800 ¢900 ¢1000mm Height 1100mm

Output

¢350 ¢400 ¢500mm Height 1100mm or 900mm

Feeding Form

Overhead creel lengthwise positive feeding

Main Motor

3.5Kw

Power of suction blower

0.75Kw

Power of servo motor

1.5Kw
